With patented design and function, our range of ÉLITER Cardboard Sleeving machines presents options to suit both Pre-glued and Wrap-Around cardboard sleeves. With Robust structure, user-friendly operations and next to ‘NO’ maintenance our Cardboard Sleeving machines are first choice for many market leading operators across the globe.
All ÉLITER machinery supplied through Bravu is built to meet Australian Safety and Electrical standards. Utilising premium global brands including Siemens and Schneider, technical support is seamless with replacement components easily accessible locally.
Our Cardboard Sleeving machines suit applications including Trays, Bowls, Tubs, Pods, Bottles and more in single or multi-pack formats. Products that are presented in a well-designed cardboard sleeve stand out among the competition with extended space for brand and product marketing.
MODELS

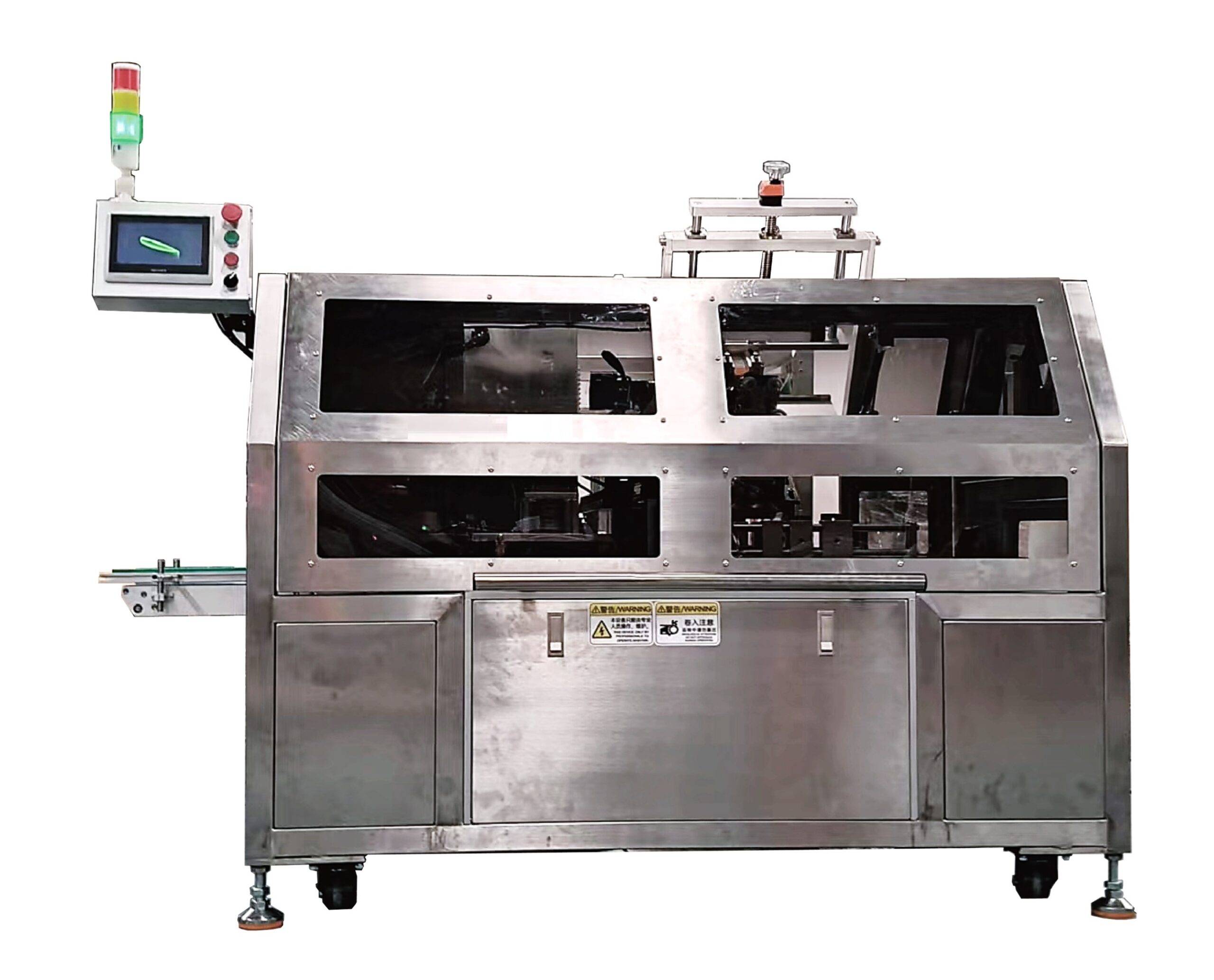

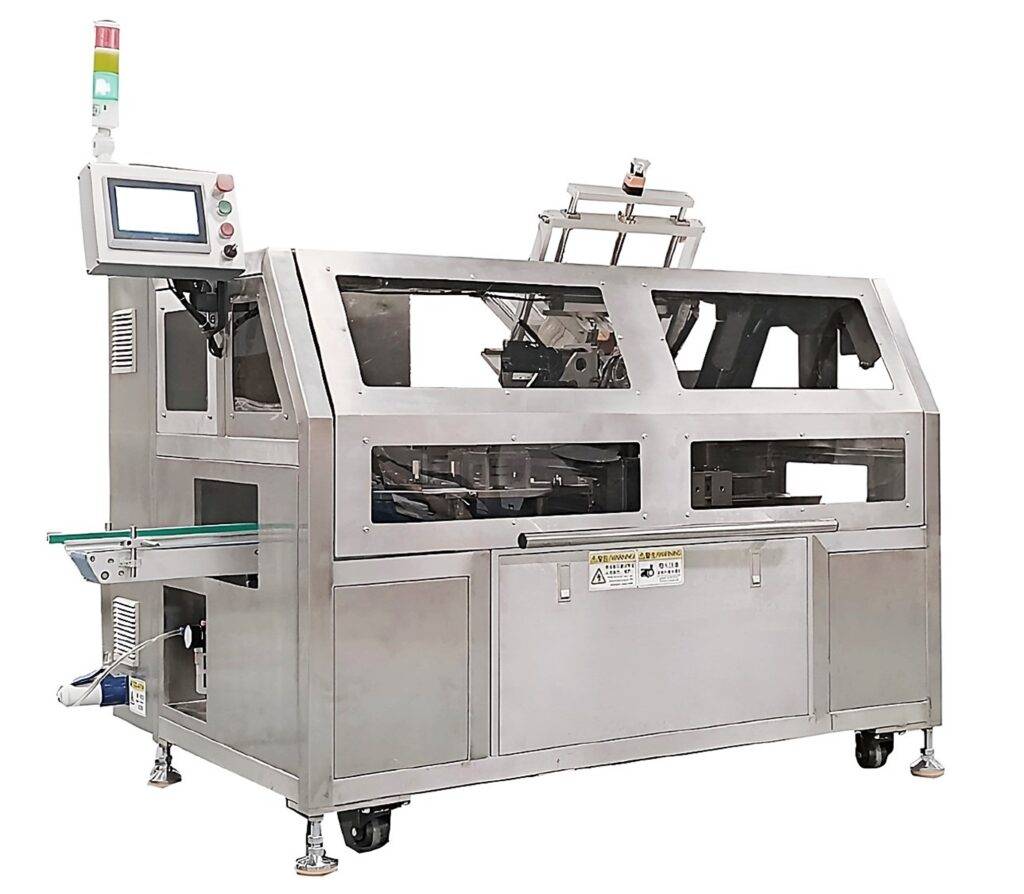

BE-PS-50

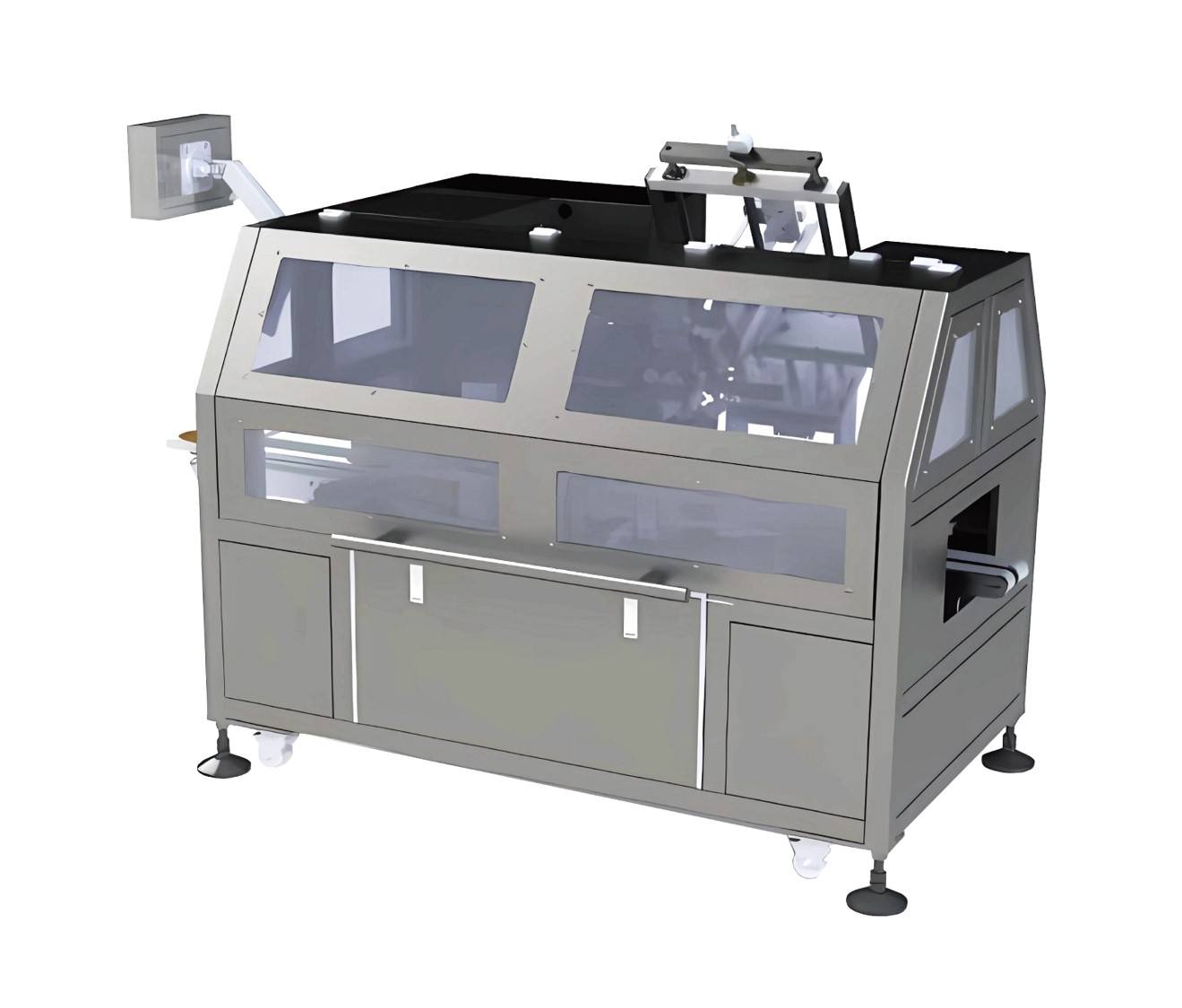

AUTOMATIC PRE-GLUED CARDBOARD SLEEVING MACHINE
The ÉLITER pre-glued sleever is an affordable alternative to our wrap-around sleever suited to operators with focus on budget and/or concerns around footprint.
Standard Features

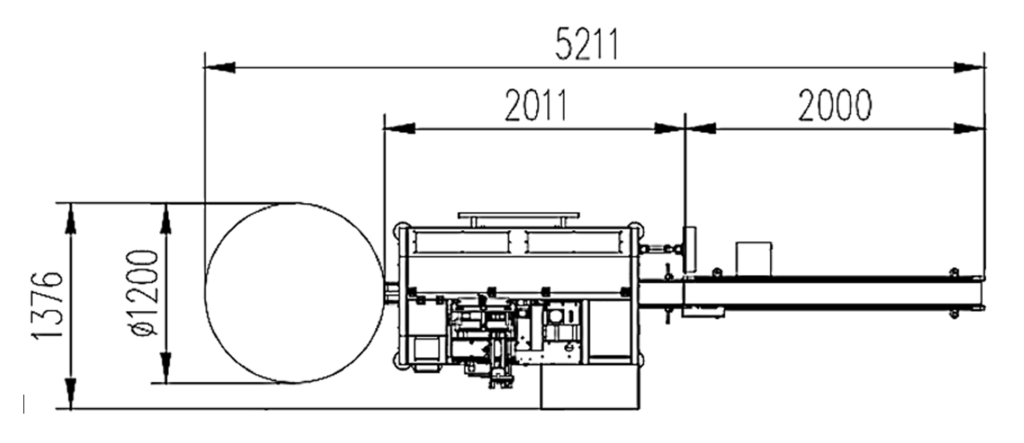

Compact footprint design of 2000 mm in length Capable of up to 50 packs per minute (subject to pack size) End-loading pattern with pre-glued sleeve application Robust stainless-steel construction Built-in feeding & timing system Built-in short infeed & outfeed belt Trisection sleeve picker Only available for single pack
Operation Sequence
The machine has a built-in infeed conveyor where trays, tubs, cups or bowls are received and timed by a blocking gate.
A rotary feeder presents pre-glued sleeves from the magazine, erects it together with a down-dragging picker and holds the pre-glued sleeve at the loading station.
Chains with plastic lug runs at continuous motion and the blocking gate releases the container at a due time towards the former, then the lug push the container and inserts it into the erected pre-glued sleeve. Finished packaging is discharged from a built-in conveyor.
Technical data
Pack parameters- Length: 75mm – 300mm | Width: 75mm-260mm | Height: 20mm-75mm
Air consumption- 5.5bar / 120ltr per minute | Electrical Supply- 220V 50/60Hz 3 phase + N
Electrical loading- 6kW | total machine weight- 720kg

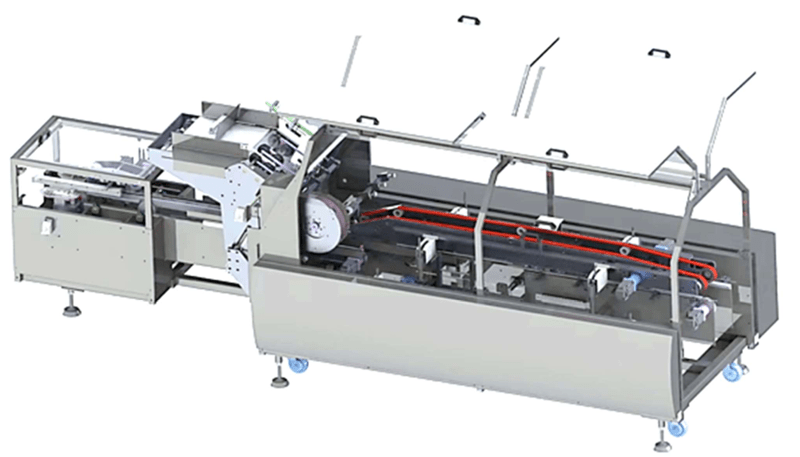

ESTRENA BE-WAS-150
AUTOMATIC WRAP-AROUND CARDBOARD SLEEVING MACHINE
ESTRENA™ Wrap-Around Sleever is a full servo-driven carton sleeving machine that employs solid, robust and hygienic stainless-steel construction for food-grade application and is of ergonomic and aesthetic appearance with excellent accessibility for maintenance.

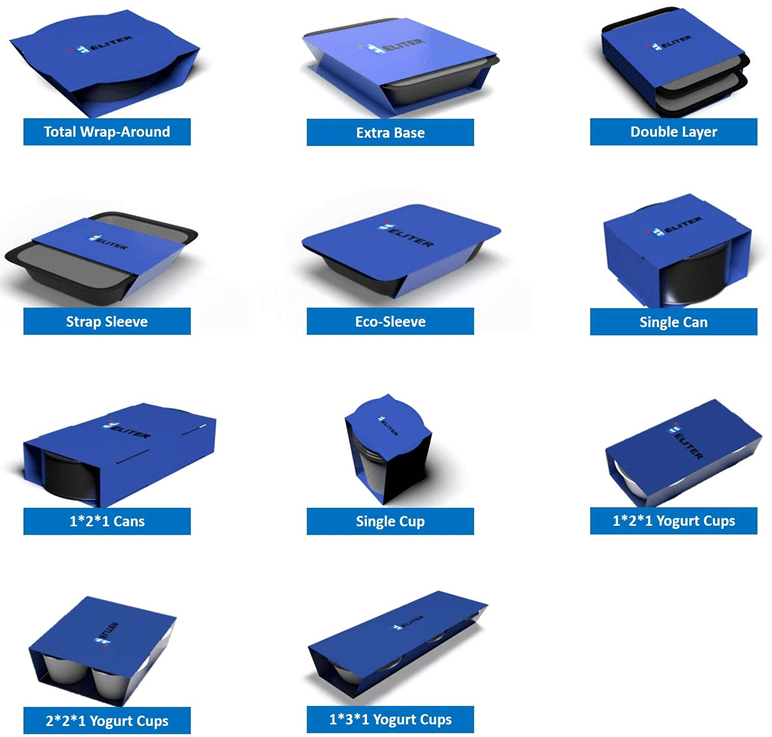

ESTRENA™ is also designed to cover a wide range of container sizes and with easy, fast and repeatable size changing.
Standard Features
Left-in and right-out machine or vice versa are available
Fixed sleeve magazine change part
Sleeve magazine with auxiliary pneumatic agitation for sleeve pick-up
Patented rotary sleeve feeder. Pickers always face outwards thus no collision in the sleeve
Servo-driven overhead belts can be levered for maintenance
Focke Meler B4 hot melt jetting system
SIEMENS Control Platform
SINAMICS S7-1500 PLC
SINAMICS V90 servo converter
SIMOTICS S-1FL6 servo motor
KTP 900 HMI Panel
Speed up to 150 PPM according to container size and format
Caster mounted for easy installation
Ergonomic safety guards with hall switches for operator safety
Emergency buttons available at all corners
Robust stainless-steel construction for food-grade use
Simple size changeover around 15 minutes
Optional Features –
At Additional Cost
Powered and extended sleeve hopper
Bespoke conveyor, grouping and infeed system (according to container shapes and sizes)
Additional fixed sleeve magazine change part
Ink coder or laser coder
Nordson Mesa or Nordson Pro Blue Glue System
Remote Access Devices for Support (Ewon Box, Inovance, Teltonika)
Wash down to IP65 or NEMA 4X

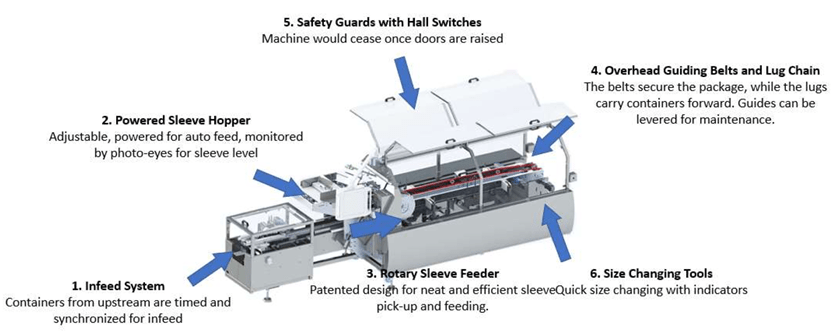

Structure and Process
Containers (trays of ready meals, for example) are received randomly and timed by the infeed system and then introduced into the sleever by the main infeed conveyor. Sleeve blanks are fed and placed by the rotary feeder directly onto each container. The lug chains and overhead guiding belts take the containers go through a series of guides and powered components; hot-melt glue is jetted onto the glue-flap to seal the package. The overhead guides and a powered base belt discharge the wrapped packages.
Technical data
Pack parameters- Length: 75 – 265mm | Width: 75-215mm | Height: 20-80mm | glue flap min 15mm
Air consumption- 5.5bar / 120ltr per minute |
Electrical Supply- 220V 50/60Hz 3 phase + N Electrical loading- 15kW | total machine weight- 1,900kg
